Fully Integrated M Series Modular System
Our small-scale plug and play industrial platform

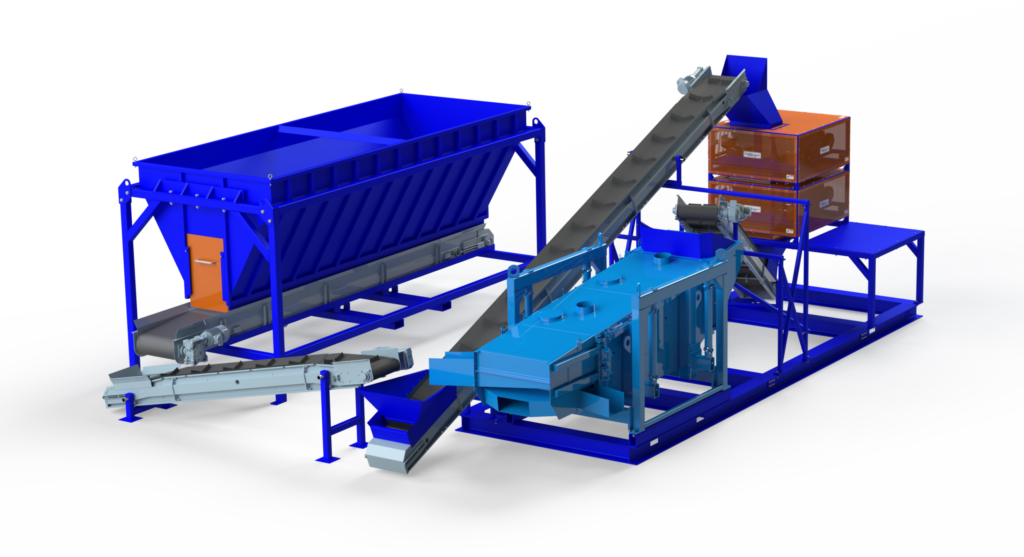

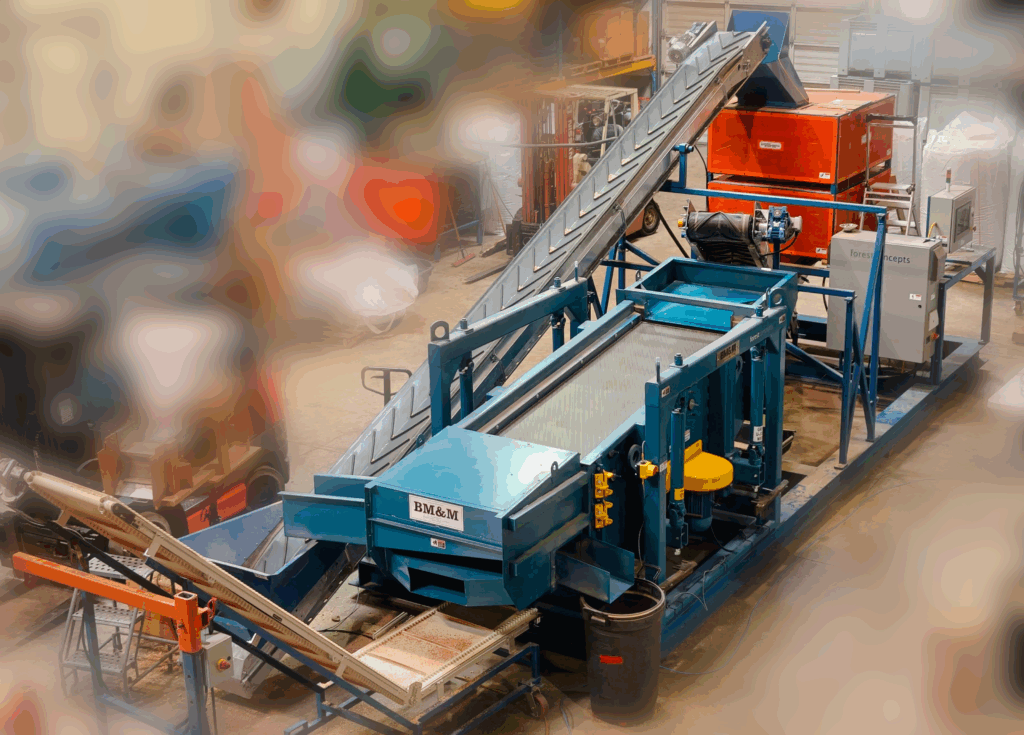

Our plug and play biomass preprocessing platform is modular, fully integrated, and customizable to you facility needs. The M series platform can feature feed modules, comminution modules, drying modules, and more. The featured comminution module includes a pair of M24M series rotary shears. They have a small footprint, but are strong enough to handle a wide range of materials including wood chips, corn stover, switchgrass, bamboo, sage, hemp, agave, sugar cane, and more. The base platform is capable of processing up to 2 green tons* per hour of your raw feedstocks into precision particles. You choose the options and we deliver an appliance, not a construction project.
Key Features:
Size Reduction Module
- Utilizes our proprietary M series Crumbler rotary shear technology
- Processes both high and low moisture feedstocks (no pre-drying required)
- Produces highly uniform, flowable, particles with a narrow size distribution to increase conversion efficiencies
- Low energy consumption
- Multiple cutter-thickness processing heads available to tailor feedstocks for your process (standard widths are 1/4″, 3/16″, 1/8″, and 1/16″)
- For more information: M24M Series Crumbler® Machines
Size Reduction Module
- BM&M 3×8 two deck Super Screen
- Screen elements matched to size reduction module
- For more information: Partner Products
Infeed Module
- Storage volume of 7 and 14 cubic yard options
- Metering feed rate controlled by system and responsive to system load to maximize efficiency
System Wide Features
- Integrated self adjusting PLC controls reduce labor costs
- Conveyors commercially sourced from partners with proven robust durability
- Modular for easy platform customization
- Smooth, quiet operation
- Small footprint – size reduction and screen modules only 28′ X 8′
- Standard power – 480VAC 3ph
Additional Options
- Tramp metal separation
- Screen dust enclosures and collection points
- Rotary shear mill dust collection points
- Dryer module
* Throughput estimates based on ideal feedstocks and a skilled crew. Stated throughput is for green wood chips into 1/4″ feedstock particles. Throughput is inversely proportional to comminution ratio and final particle size. Other configurations and versions up to 3, 5, and 10 tons per hour capacity are feasible. Dust control may be needed depending on moisture content and processing conditions.
Higher capacity and P series systems can be integrated into the modular scheme.
We are not limited to the platform customizations depicted; please contact our engineering team for assistance.
